Pressure Sensor Platforms freemed Sensor Medica

Our devices are designed to be the excellence for static, dynamic and stabilometric analysis. In combination with freeStep software,they are the new generation of integrated instruments for postural evaluation and biomechanical analysis. The freeMed modular platforms can meet every clinical and sports need.

Our Dynamic platforms are detecting:

• Fall risk assessment
• Ulcer risk evaluation
• Plantar pressure distribution during standing and walking
• Gait cycle with spatiotemporal measurements
• Dynamic balance testing
• Post surgery evaluation
• Neurological rehabilitation
• Patient biofeedback
• Prosthesis alignment analysis

Made in aluminum, they are light

weight and transportable, always complete of two passive plates for allowing the patient to walk naturally.
High sample frequency of more than 400Hz in real time.
All the resistive sensors are 24K gold coated to ensure an extreme reliability and repeatability and have a durability of more than one million work cycles.
All the acquired informations are processed by our freeStep analysis software.
Maintenance free with no hardware re-calibration required. 3 year warranty.

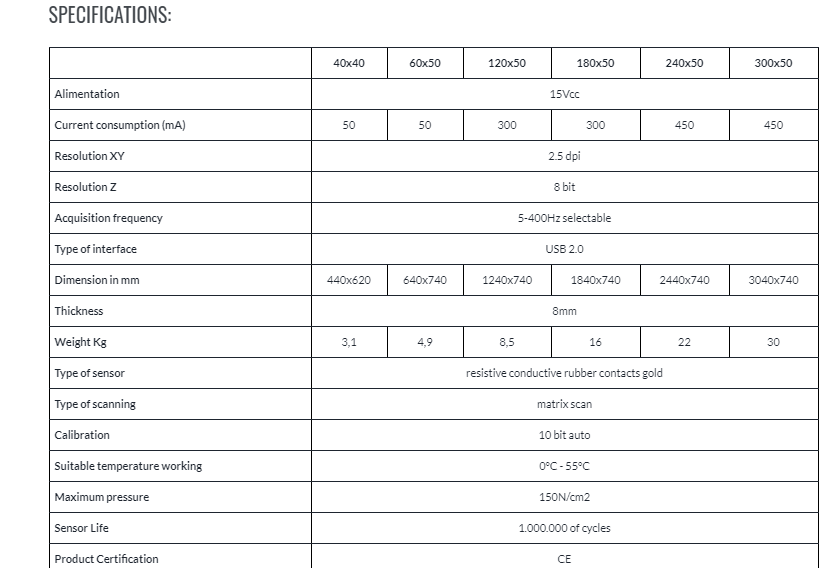

• Resistive sensors, 24 K gold coated, conductive rubber;
• Configurations: 40cm x 40cm up to 300 cm x 50cm;
• USB 2.0 interface;
• Sampling frequency up to 400Hz in real time.

Delivery within 30 days from the day of your order.
