Electric lifter Ulisse EL 150 CI Antano

SKU:
E-shop price:
Available

Ulisse EL 150 CI Antano

  • Description
Description

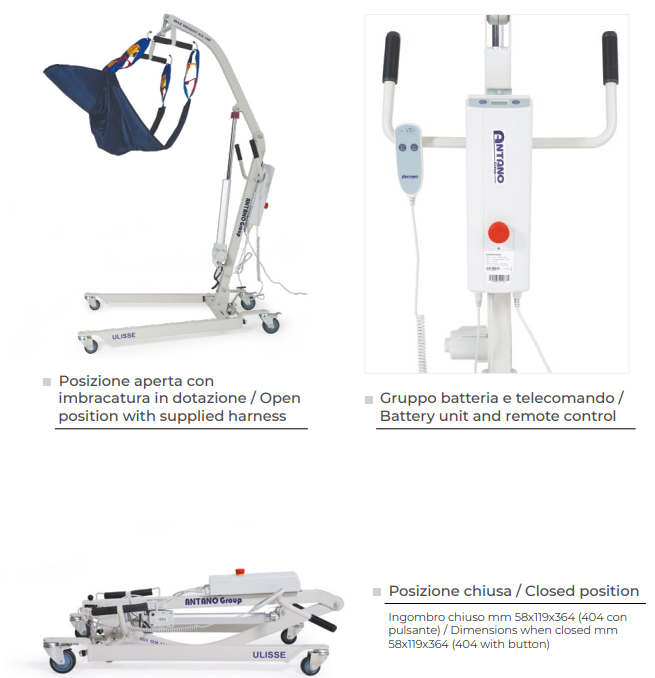

The Electric Lifter With Adjustable Base Ulisse EL 150_CI features a fully steel tubular frame with differentiated sections of high mechanical strength. The base is width-adjustable using a pedal system, with continuity, and features 4 swivel wheels with the rear two having separate brakes.

Lifting is performed by an electric linear actuator controlled by a control unit and powered by a lead battery unit. The unit features a manual handling system in case of emergency.




Dimensions :

 Minimum height from ground 1000 mm
 Maximum height from ground 2000 mm
 Minimum width of the adjustable base 545 mm
 Maximum width of the adjustable base 805 mm
 Length 1180 mm
 Base height of lifter from ground 110 mm
 Total mass 36 Kg
 Maximum load allowed 150 kg
Voltage 50-60 Hz
 Voltage 24 V dc
Capacity 2.9Ah
 Average charging time 1,5 h
 Packaging 1160x662x250 mm



For any information please contact us.

Delivery within 30 days from the day of your order.
